WCP003 - Transcrete P160 XHP-8 TOPGUN Super High Pressure

WCP003 - Transcrete P160 XHP-8 TOPGUN Super High Pressure - Wallace Concrete Pumping Services Contractor Company - Sydney NSW
Since 2002, Wallace Concrete Pumping has provided the greater Sydney region a high quality concrete line and boom pumping service to a range of different projects from residential to commercial and civil.

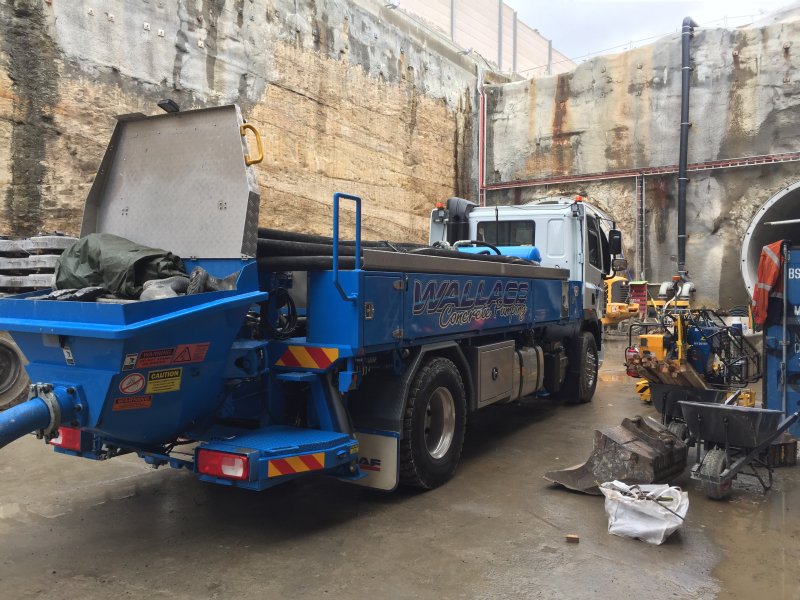

Transcrete P160 XHP-8 TOPGUN Super High Pressure with fire suppression system fitted

Concrete pump mounted to a single rear axle DAF CF85 (460 HP/18 tonne capacity) truck, output rating of 115 m³ per hour @ 26 strokes per minute.

Delivery Line: 2.5, 3, 3.5 & 4 inch

• Cordless remote control
• High pressure piston bodies
• Hopper safety interlock (accumulator dump)
• Remixer speed control with shut of valve
• SOFT PUSH system
• Water blaster, 10 metre hose and Lance
• Manual JOG/change over switch
• Air blow out kit and accessories
• Emergency stops, horn button and water blaster switches mounted on each side of rear steps
• Fast/slow range proximity switches
• Front/rear hydraulic outriggers
• Shut-down valve controls mounted both sides
ADDED EXTRAS:
Remote controlled air blow out
E stop/engine shut down mounted rear of pump
E stop/engine shut down mounted in cab
300 AMP Anderson plug
Hand brake alarm
Mounted fire extinguisher N/C
Accumulator double dump valve N/C
Hydraulic shut down valve

Technical Specifications

WCP003ZSpecificationZSheet_1.pdf

Supporting Documentation

SuperdraulicZ68ZMSDSZLineZPumps_1.pdf

Automotive_Diesel_Fuel-MSDS_3.pdf

30012ZTopZDogZXDOZMSDS_1.pdf

Automotive_Diesel_Fuel-MSDS.pdf

30012_Top_Dog_XDO_MSDS.pdf
